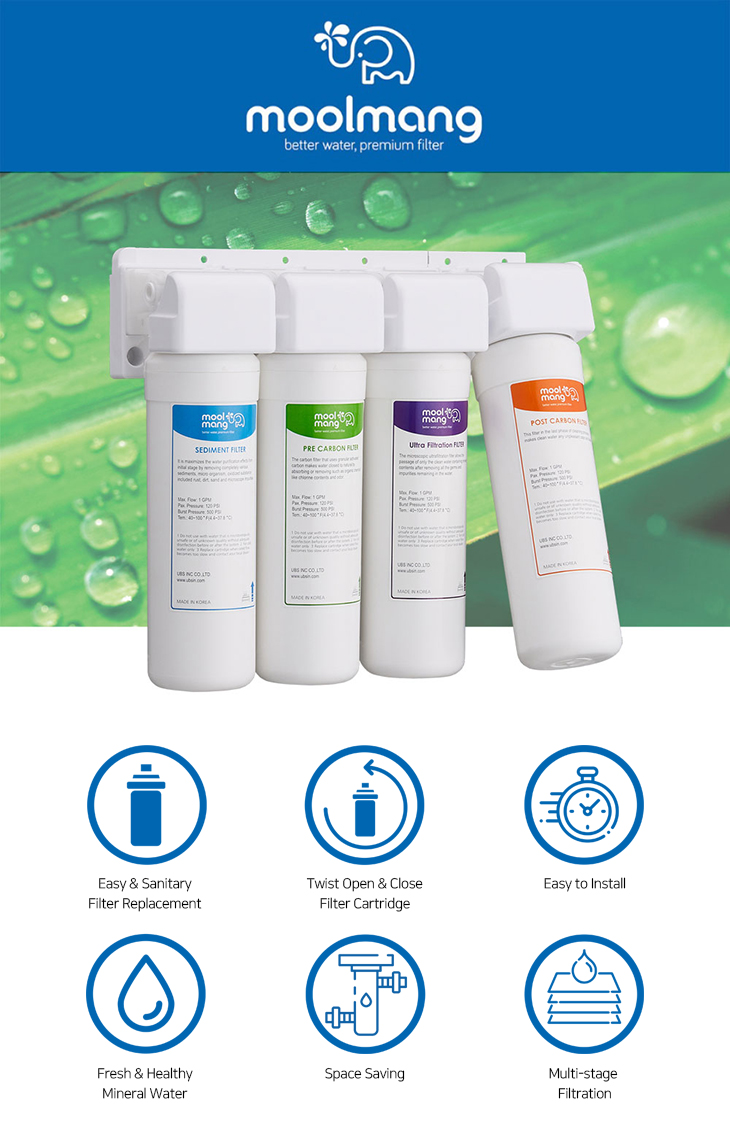

Quick change filter system for healthy drinking water!
Moolmang EZ Filter System(UWF EZUF08A / 4 Stage) is a top quality inline filter system that makes drinking water safer and healthier. With improved taste and greater clarity, you will find better flavor in food and beverage when they are made with filtered water.
This system is also advanced both in filtration performance and convenience of use. Moreover, it is designed to ensure easy (1/4” twist to open & close) and non-slip replacement. Also, it can be configured of various multi-stages water purification system.
1st Sediment Filter
The membrane of this filter is covered with a layer of melt-blown polypropylene filter media. This exterior surface and the adsorptive membrane can provide filtration to 5 micron nominal rating. It maximizes the water purification effects from initial stage by completely removing various setting, micro-organism, oxidized substance to exclude rust, dirt, sand and microscope impurities.
2nd Pre Carbon Block Filter
Pre carbon block filter thereby removes many volatile organic chemicals, including bad tastes & odors, residual chlorine, harmful pesticides & herbicides, pigment and hundreds of other man-made chemicals found in tap water because carbon is a substance best known and most widely used to absorb impurities.
3rd UF Membrane Filter
Ultrafiltration(UF) is a separate process using membranes with pore size in the range of 0.1 to 0.001 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, organic and inorganic polymeric molecules allowing only fresh water and dissolved minerals to pass through.
4th Post Carbon Block Filter
Post carbon block filter thereby removes many volatile organic chemicals, including bad tastes & odors, residual chlorine, harmful pesticides & herbicides, pigment and hundreds of other man-made chemicals found in tap water because carbon is a substance best known and most widely used to absorb impurities and improve water tastes.
Sediment Filter | Pre Carbon Block Filter | UF Filter | Post Carbon Block Filter | |
---|---|---|---|---|
Function | Removes sediments, fine pollutants | Removes odors, chlorine | Removes heavy metal, bacteria upto 0.1~0.01 micron | Improves the taste of water |
Material | PP | PP, Carbon Block | Polysulfone Membrane | PP, Carbon Block |
Filter Type | Nipple ¼”, Quick Change | Nipple ¼”, Quick Change | Nipple ¼”, Quick Change | Nipple ¼”, Quick Change |
Pore Size | 5 micron | 1 micron | 0.1 mircon | 1 micron |
Maximum Flow | 1 GPM(4 LPM) | 1 GPM(4 LPM) | 1 GPM(4 LPM) | 1 GPM(4 LPM) |
Maximum Pressure | 100 PSI | 100 PSI | 100 PSI | 100 PSI |
Maximum Temperature | 100 ºF(37.8 ºC) | 100 ºF(37.8 ºC) | 100 ºF(37.8 ºC) | 100 ºF(37.8 ºC) |
Burst Pressure | 500 PSI | 500 PSI | 500 PSI | 500 PSI |
Replacement Period | 3 months | 6 months | 12 months | 6 months |
Effective Filtration Capacity | 476 Gallons(1,800 L) | 475 Gallons(1,800 L) | 951 Gallons(3,600 L) | 475 Gallons(1,800 L) |
Model No. | UWF-EZUF08A | |||
Size | 278(W) x 86 (D) x 258 (H) mm | |||
Weight | 1.20 Kg | |||
Accessory | Faucet, Connector, Tube 3 m, Thread Seal Tape, Manual | |||
Pallet & 20Ft Loading | 160 pc/pallet, 1600 pc on 20Ft |
