Water Filter & Water Purifier
3 stage water filtration system for your healthy drinking water!
Aqua System (Counter Top / UWF 200ST)
Aqua System (Counter Top / UWF 200ST)

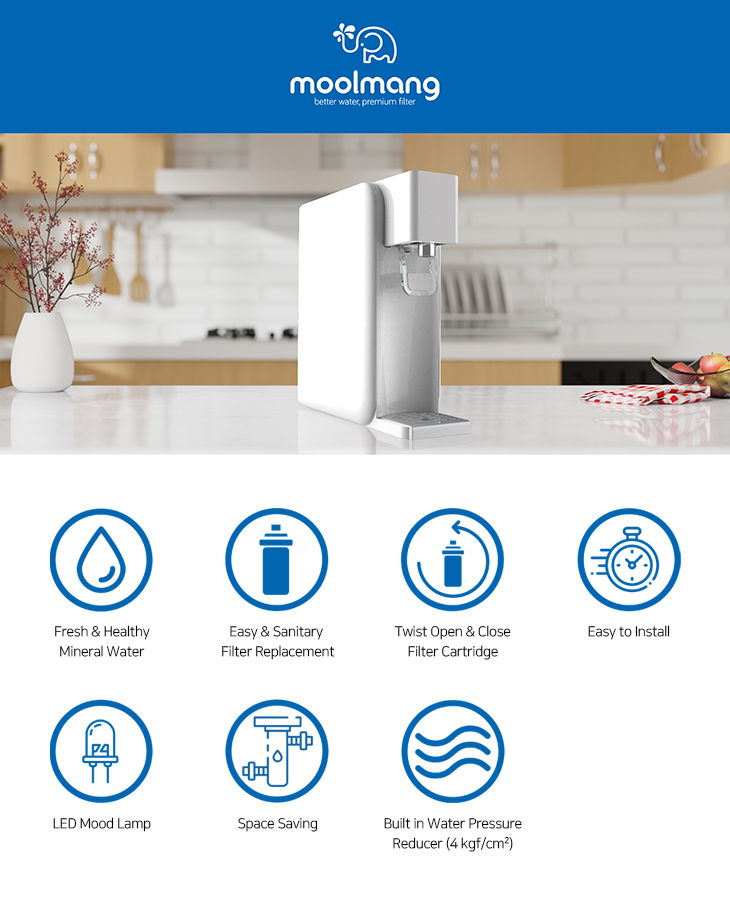

Moolmang Aqua System(UWF 200ST / Square head) is an innovative new water filter design to efficiently extract particles, chemicals, organic matter and other contaminants that affect your water taste and pose risks to your health.
However, unlike many other filtration systems in the market, this system leaves intact healthy minerals that enrich water naturally, offering you superior water for healthy hydration.
Also, this water purifier that counter water purification system is designed to offer you an endless supply of healthy, great-tasting water. Equipped with two carbon block filters and one ultra filtration filter, this system reduces contaminants while simultaneously leaving intact healthy minerals to improve the quality and taste of water. Moreover, quick change filter design of this system makes it a tremendous value and one of the easiest system to use and maintain.
1st Pre Carbon Block Filter
Pre carbon block filter thereby removes many volatile organic chemicals, including bad tastes & odors, residual chlorine, harmful pesticides & herbicides, pigment and hundreds of other man-made chemicals found in tap water because carbon is a substance best known and most widely used to absorb impurities.
2nd UF Membrane Filter
Ultrafiltration(UF) is a separate process using membranes with pore size in the range of 0.1 to 0.001 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, organic and inorganic polymeric molecules allowing only fresh water and dissolved minerals to pass through.
3rd Post Carbon Block Filter
Post carbon block filter thereby removes many volatile organic chemicals, including bad tastes & odors, residual chlorine, harmful pesticides & herbicides, pigment and hundreds of other man-made chemicals found in tap water because carbon is a substance best known and most widely used to absorb impurities and improve water tastes.
| Pre Carbon Block Filter | UF Membrane Filter | Post Carbon Block Filter | |
|---|---|---|---|
| Function | Remove impurities, chlorine, chloramines, odor | Remove heavy metal, bacteria upto 0.1 micron | Remove chlorine, chloramines & improve water taste |
| Material | PP, Carbon Block | Polysulfone Membrane | PP, Carbon Block |
| Filter Type | Nipple ¼” Quick Change Type | Nipple ¼” Quick Change Type | Nipple ¼” Quick Change Filter |
| Pore Size | 1 micron | 0.1 mircon | 1 micron |
| Maximum Flow | 0.5GPM(1.9LPM) | 0.5GPM(1.9LPM) | 0.5GPM(1.9LPM) |
| Maximum Pressure | 25~80 PSI (172 ~ 551 kPa) | 25~80 PSI (172 ~ 551 kPa) | 25~80 PSI (172 ~ 551 kPa) |
| Maximum Temperature | 39.2~100°F (4.4~37.8°C) | 39.2~100°F (4.4~37.8°C) | 39.2~100°F (4.4~37.8°C) |
| Burst Pressure | 500 PSI | 500 PSI | 500 PSI |
| Replacement Period | Max. 6 months | Max. 12 months | Max. 6 months |
| Effective Filtration Capacity | 475 Gallons(1,800 L) | 951 Gallons(3,600 L) | 475 Gallons(1,800 L) |
| Model No. | UWF-200ST | ||
| Size | 119(W) x 363 (D) x 340 (H) mm | ||
| Weight | 4.5 Kg | ||
| Color | White | ||
| 20 Ft Loading | 800 PC | ||
