Quick change filter system for healthy drinking water!

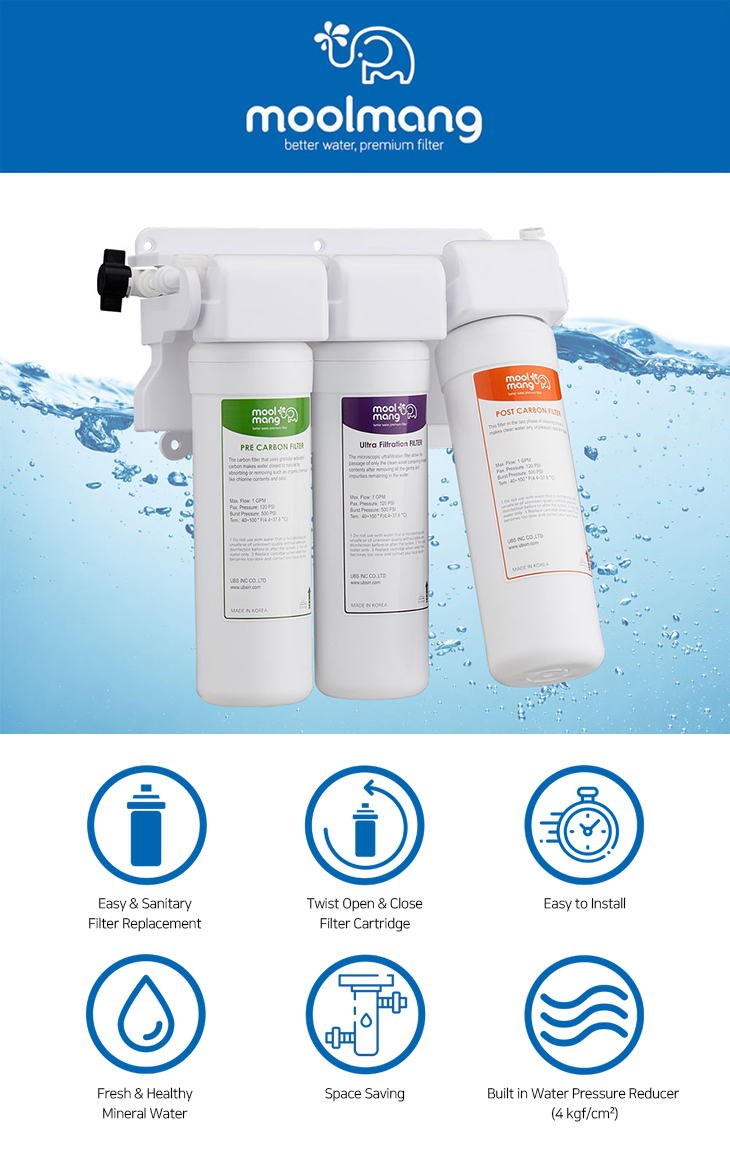

Moolmang EZ Filter System(UWF EZUF08PM / Premium Kit) is a top quality inline filter system that makes drinking water safer and healthier. With improved taste and greater clarity, you will find better flavor in food and beverage when they are made with filtered water.
This system is also advanced both in filtration performance and convenience of use. Moreover, it is designed to ensure easy (1/4” twist to open & close) and non-slip replacement. Also, this system equipped with water pressure reducer (4 kgf/cm2) to prevent over pressure and keep stable pressure rate for better performance!
1st Pre Carbon Block Filter
Pre carbon block filter thereby removes many volatile organic chemicals, including bad tastes & odors, residual chlorine, harmful pesticides & herbicides, pigment and hundreds of other man-made chemicals found in tap water because carbon is a substance best known and most widely used to absorb impurities.
2nd UF Membrane Filter
Ultrafiltration(UF) is a separate process using membranes with pore size in the range of 0.1 to 0.001 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, organic and inorganic polymeric molecules allowing only fresh water and dissolved minerals to pass through.
3rd Post Carbon Block Filter
Post carbon block filter thereby removes many volatile organic chemicals, including bad tastes & odors, residual chlorine, harmful pesticides & herbicides, pigment and hundreds of other man-made chemicals found in tap water because carbon is a substance best known and most widely used to absorb impurities and improve water tastes.
Pre Carbon Block Filter | UF Filter | Post Carbon Block Filter | ||
---|---|---|---|---|
Function | Removes chlorine, harmful organic chemicals | Removes various bacteria, viruses | Improves the taste of water | |
Material | PP, Carbon Block | Polysulfone Membrane | PP, Carbon Block | |
Filter Type | Nipple ¼”, Quick Change Type | Nipple ¼”, Quick Change Type | Nipple ¼”, Quick Change Type | |
Pore Size | 1 micron | 0.1 mircon | 1 mircon | |
Maximum Flow | 1 GPM(4 LPM) | 1 GPM(4 LPM) | 1 GPM(4 LPM) | |
Maximum Pressure | 100 PSI | 100 PSI | 70 PSI | |
Maximum Temperature | 100 ºF(37.8 ºC) | 100 ºF(37.8 ºC) | 100 ºF(37.8 ºC) | |
Burst Pressure | 500 PSI | 500 PSI | 500 PSI | |
Replacement Period | Max. 6 months | Max. 12 months | Max. 6 months | |
Effective Filtration Capacity | 475 Gallons(1,800 L) | 951 Gallons(3,600 L) | 475 Gallons(1,800 L) | |
Item | Moolmang EZ Filter System | |||
Model No. | UWF-EZUF08PM (Water Pressure Reducer 4 kgf/cm2 installed) | |||
Size | 240(W) x 111 (D) x 258 (H) mm | |||
Weight | 1.25 Kg | |||
Accessory | Connector, Tube 3 m, Thread Seal Tape, Manual | |||
Pallet & 20Ft Loading | 160 pc/pallet, 1600 pc on 20Ft |
